Cloning Audi BCM2 Module Using Xhorse Multi-Prog

Can Xhorse Multi-Prog or Xhorse Key Tool Plus Successfully Clone Audi BCM2 Modules?

Yes, absolutely. However, the process requires using the upgraded version of the Xhorse BCM2 Adapter for optimal performance.

BCM2 Module Cloning Procedures Based on Encryption Status

Cloning Non-Encrypted BCM2 Modules

When working with Audi BCM2 modules that have unencrypted BEPROM and flash data:

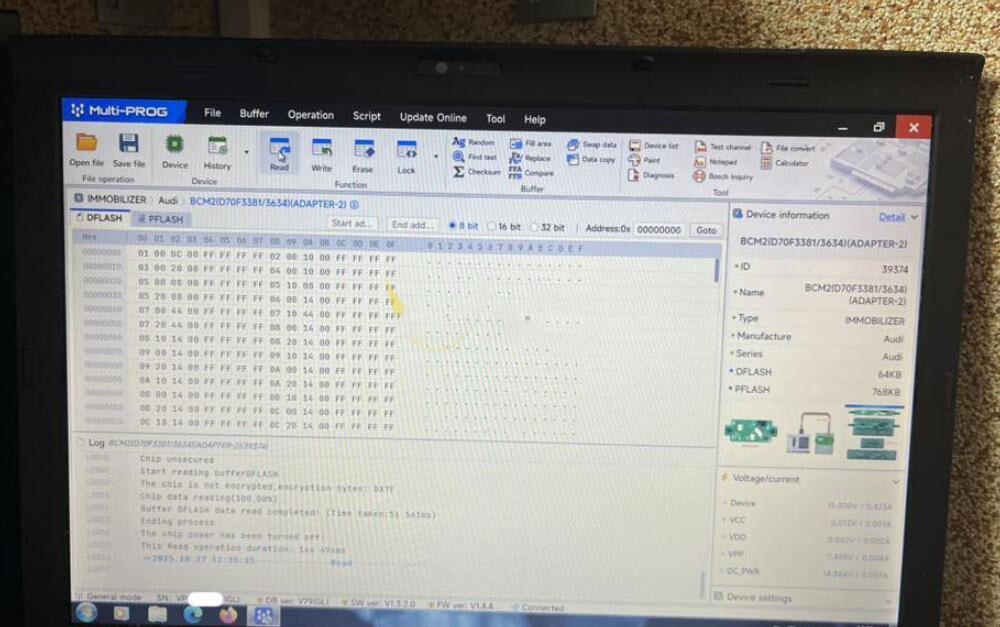

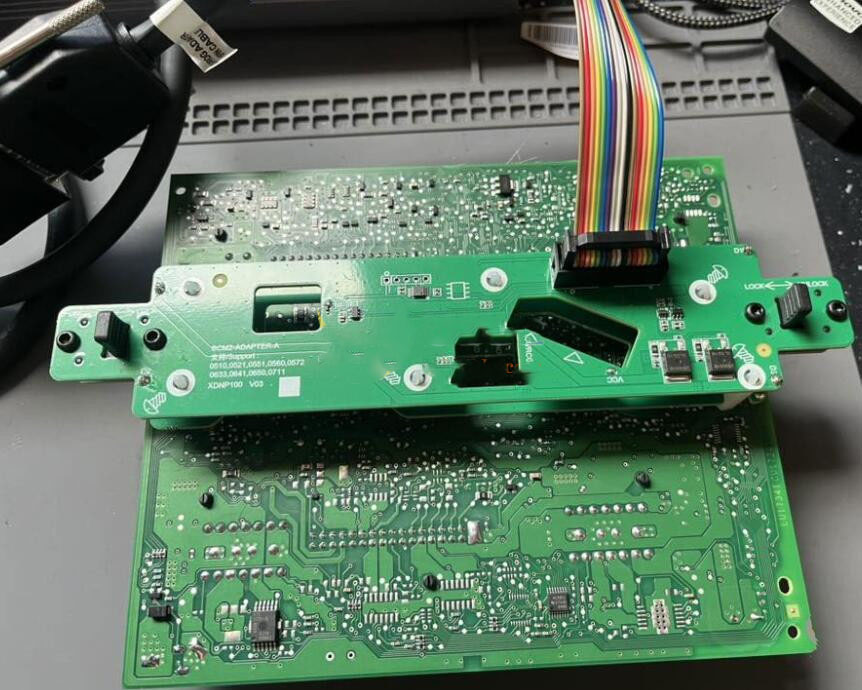

Begin by extracting both EEPROM and Flash memory contents using your Xhorse Multi-Prog device.

Transfer both complete datasets to your replacement BCM2 module.

Important: This cloning technique is only effective when both modules share identical hardware versions.

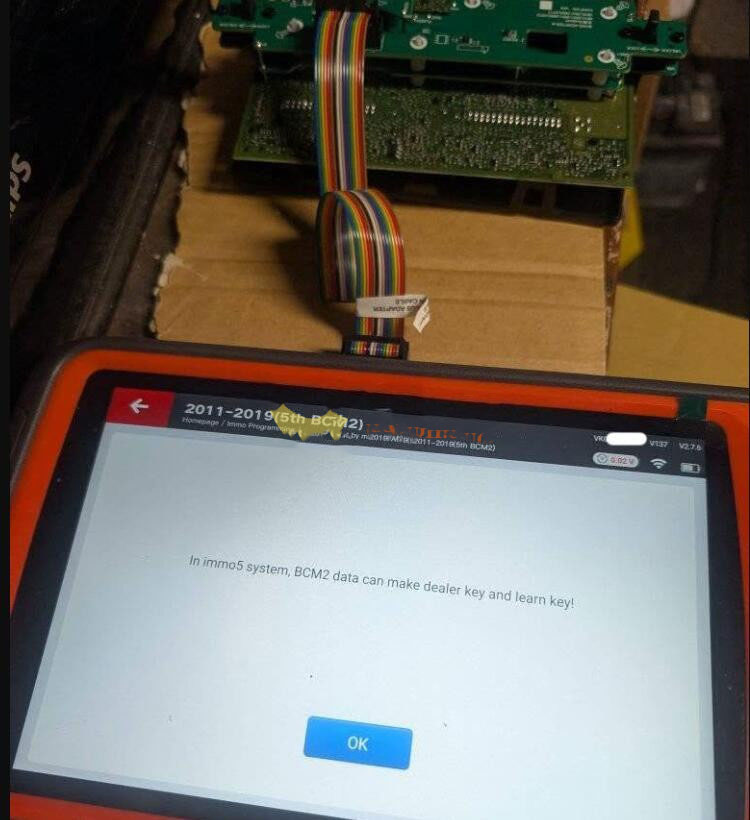

Cloning Encrypted BCM2 Modules

For secured or encrypted BCM2 modules, follow this enhanced procedure:

Ensure both the original and replacement modules have matching hardware specifications.

Utilize Xhorse Multi-Prog Programmer to extract two separate data packages: Data1 and Data2.

Import these data files into Xhorse Key Tool Plus for advanced processing.

The system will automatically generate two new critical files:

• Service Configuration File
• Immobilizer Key Data File

Install the Service File directly into the new or refurbished BCM2 module.

The cloning operation is now successfully completed.
