OBDSTAR P50 and X300 Classic G3 support 2020-2025 Volvo EX 30 P6608101985 SRS airbag Module P6608101985 crash reset function.
SRS Part number: P6608101985
Processor: locked RH850 mcu R7F701330A
Device: OBDSTAR P50/G3 with P004+ MP001 + RH850 adapter.
Update Volvo airbag to latest version. The function requires network connection.
Select Volvo P6608101985 (Bosch) R7F701330A option.

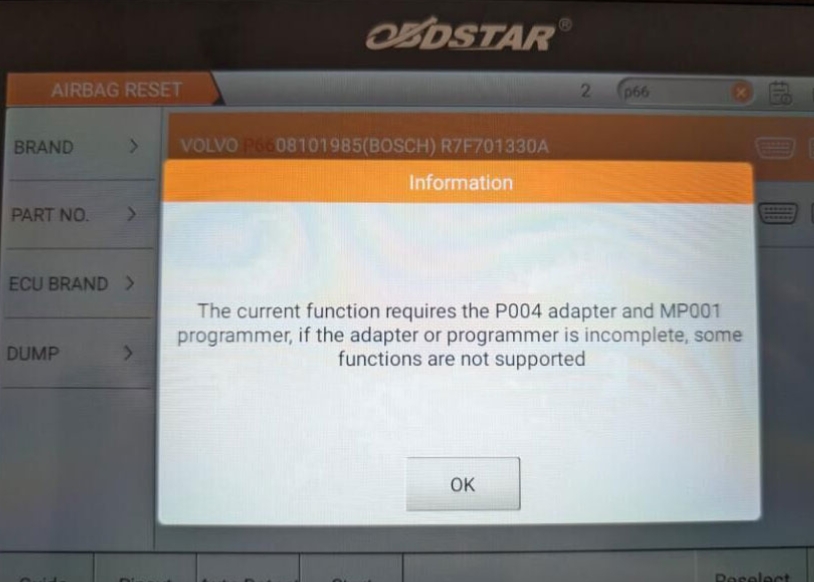

The function requires both P004 adapter and MP001 programmer.

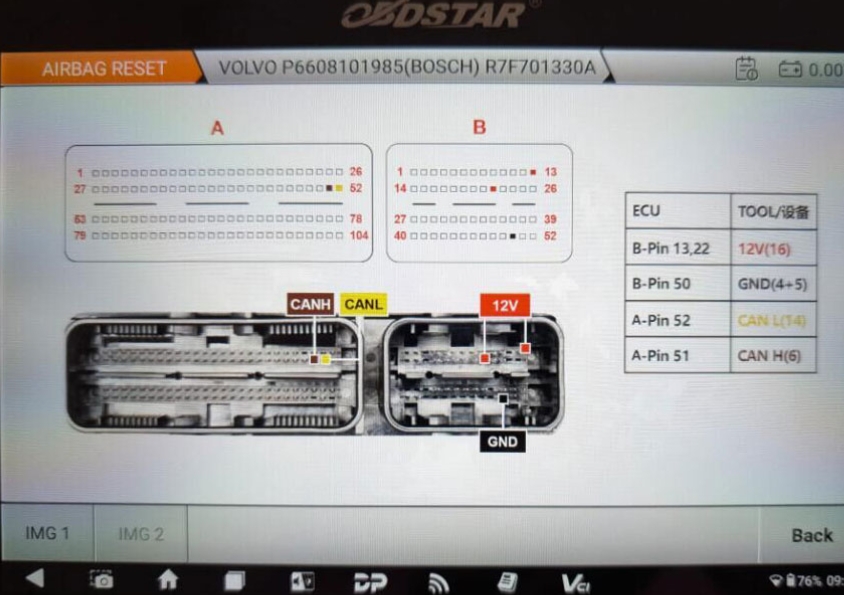

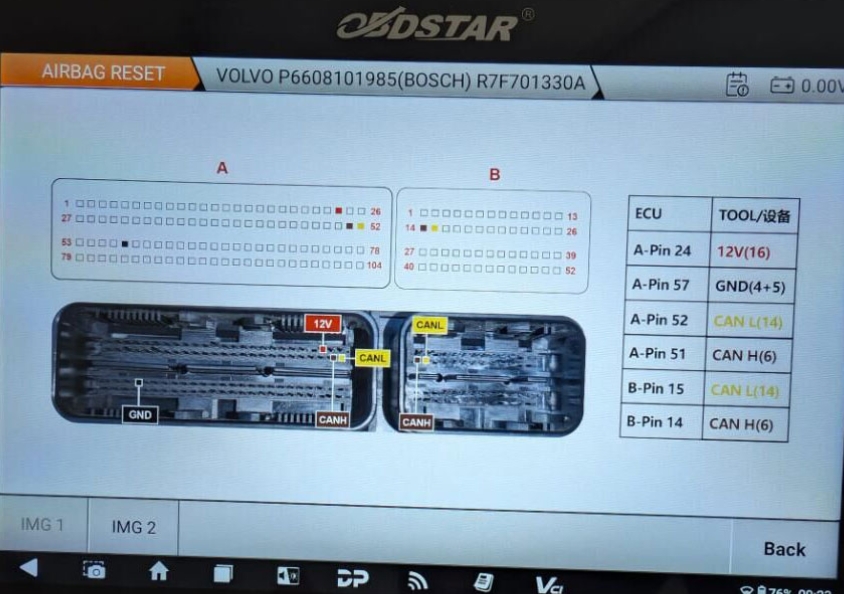

Some users reported they cannot find wiring diagram for Volvo airbag R7F701330A. You can see pinout under boot selection option.

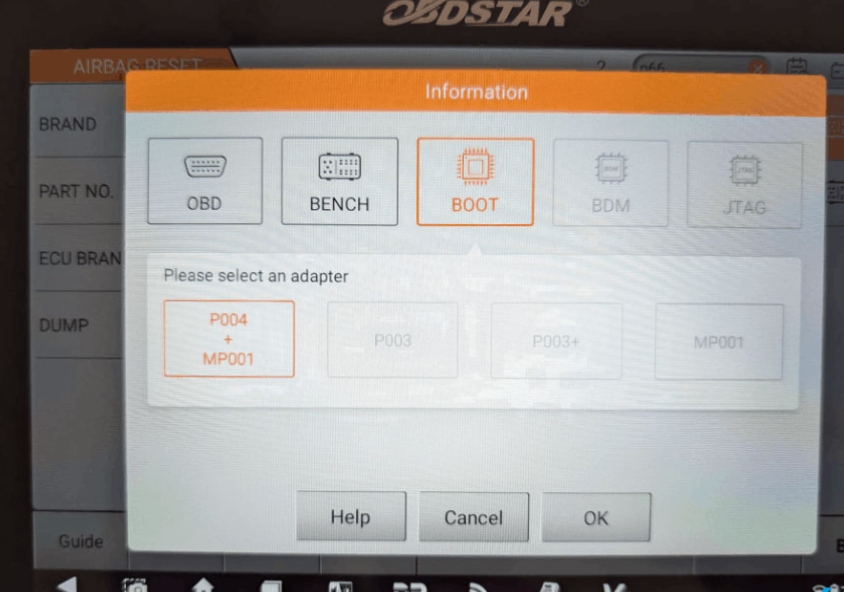

If bench mode has no wiring diagram, select Boot mode – P004+ MP001. You can see instructions and pinouts.

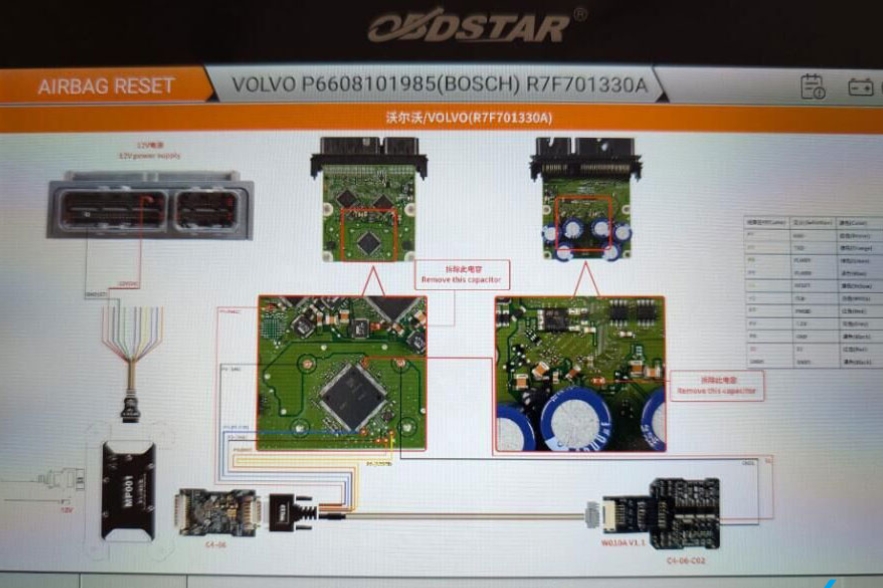

To read this airbag, you need to disassemble airbag module and connect do boot connection with RH850 kit. Also requires to remove capacitors.
OBDSTAR also support clear airbag crash for the following part number with locked RH850 mcu R7F701330A (requires MP001+ RH850 kit).
P32315746
P32315799
P32387682
P32387683
P32387684
P6608101985
