The Guide to Car Scanner ELM OBD2

Car Scanner ELM OBD2 typically refers to an OBD2 vehicle diagnostic tool based on the ELM327 chip. It works with a dedicated app (such as "Car Scanner") on a smartphone or computer to read and analyze various vehicle data.

You can think of it as a car "card reader" reading information from the vehicle's ECU (Electronic Control Unit) and displaying it in a human-readable format.

What is the ELM327?

Let me first explain the nature of ELM327: It is not a specific device, but a chip solution. This is very important and many friends will be confused. Simply put, it is a microcomputer chip designed to act as a "translator" between cars and computers (or smartphones). Its core function is bridging and protocol conversion.

The ELM327 chip itself was designed by ELM Electronics, a Canadian company.

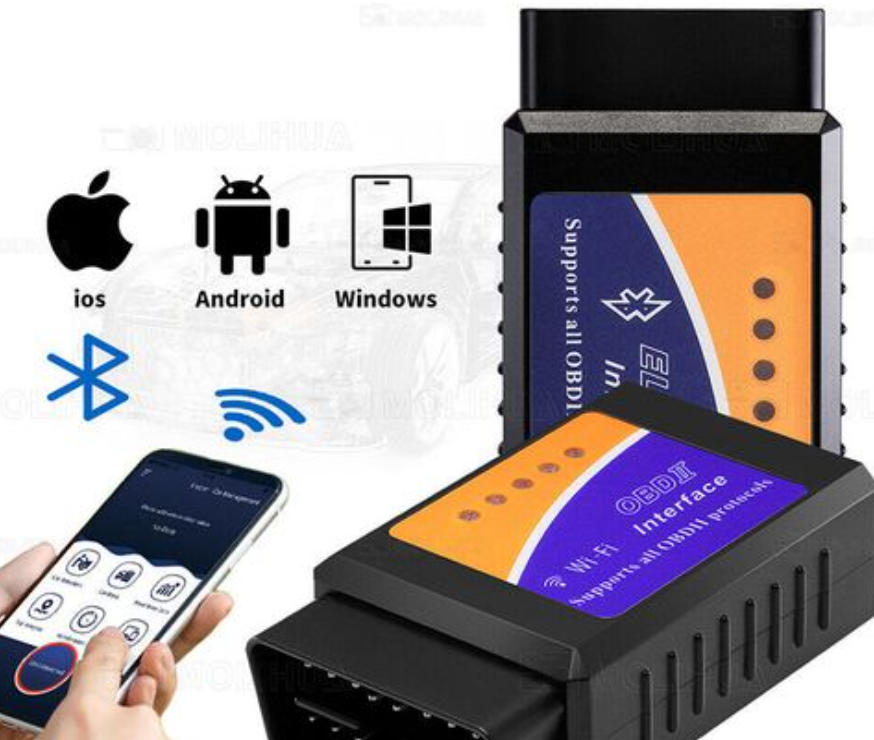

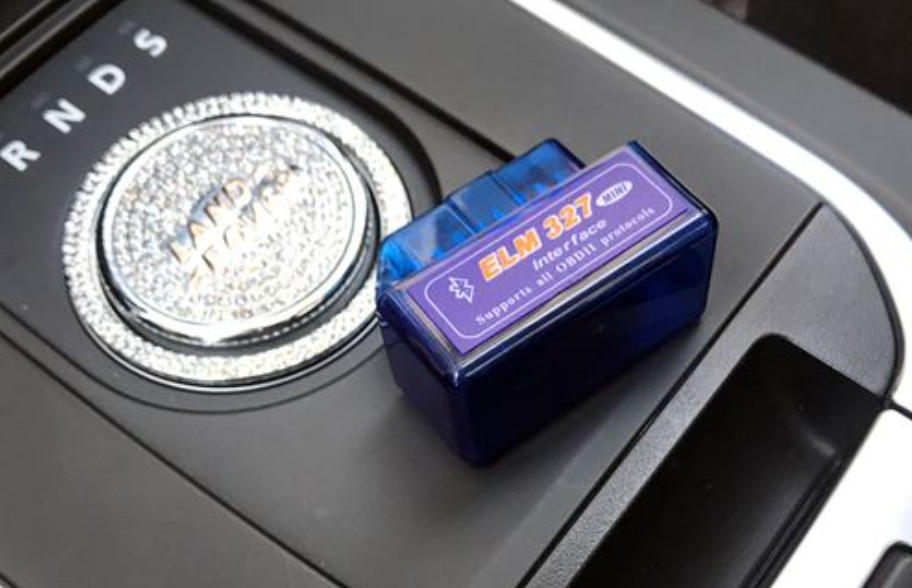

"Car Scanner ELM OBD2" or "ELM327" as we often call it, generally refers to diagnostic devices based on ELM327 chip, which come in various form factors: Bluetooth, Wi-Fi, and USB.

The reason why it is ubiquitous is that it supports the OBD-II protocol of almost all cars and has strong compatibility.

The main functions of "Car Scanner ELM OBD2"

Reads DTCs (DTCs) stored in systems such as the engine, transmission, and ABS. It can also clear DTCs to extinguish instrument panel warning lights (such as the check engine light).

Displays hundreds of real-time data streams, including engine speed, vehicle speed, coolant temperature, intake air flow, throttle opening, oxygen sensor voltage, short-term/long-term fuel trim, ignition advance angle, and more.

Read vehicle identification number (VIN), calibration identifier, and other information.

Record and replay driving data changes to analyze vehicle status at specific points in time.

Reads emission test-related data, including Ready Status and oxygen sensor test results.

How to use "Car Scanner ELM OBD2" ？

Using Car Scanner ELM OBD2 is very simple and generally follows these steps:

1. Hardware connection: Plug the ELM327 diagnostic device into your vehicle's OBD-II port. This port is usually located in the cockpit, under or near the steering wheel, and is easy to find.

2. Power on: Turn the vehicle key to the ON position (power on, but don't start the engine).

3. Device pairing (for wireless models):

Bluetooth version: Open your phone's Bluetooth settings, search for devices named "OBDII," "ELM327," or similar, and pair them.

Wi-Fi version: Find and connect to a network named "OBDII" or "ELM327" in your phone's Wi-Fi settings (you may need to enter a password, which is usually found on the device's manual or label).

4. Software connection: Open "Car Scanner" or other OBD2 diagnostic software (such as Torque or ScanMaster) on your phone or computer. Select the ELM327 device within the app and establish a connection.

5. Reading and diagnosis: After a successful connection, you can freely browse various vehicle information, read fault codes or perform real-time monitoring in the App.

Things to note when purchasing "Car Scanner ELM OBD2"

ELM327 has multiple hardware versions such as v1.5 and v2.1. v1.5 is considered to be relatively stable and compatible, so pay attention when purchasing. Also, be careful to choose a reliable seller. There are some counterfeit chips on the market, and their stability and functionality may be affected.

Bluetooth/Wi-Fi: Convenient, but Wi-Fi versions may not allow simultaneous internet access on your phone.

USB: The most stable connection, no charging required, but requires a wired connection and is typically used for connecting to a computer or laptop.

Some apps offer basic functionality for free, but advanced features (such as advanced diagnostics and full-featured coding for specific brands) may require in-app purchases. The amount and type of data that can be read also vary significantly between car models.

Car Scanner ELM OBD2 is a cost-effective automotive diagnostic tool suite, ideal for casual car owners, enthusiasts, and DIY enthusiasts looking to understand vehicle status, perform preliminary troubleshooting, and monitor real-time data.

We hope this article helps you better understand Car Scanner ELM OBD2. If you're still considering purchasing it or have questions about specific features, please contact us.
