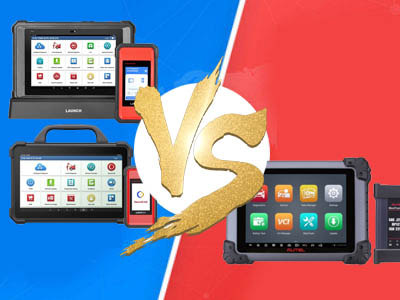

Explore the key distinctions between Launch X431 PAD series diagnostic tablets (PAD5 and PAD7 models) and the Autel MaxiSys Elite II Pro scanner. This detailed analysis helps automotive professionals select the ideal tool for their workshop needs.
Comparison table:
| Product | X431 PAD V ELITE | X431 PAD VII ELITE | Autel MaxiSys Elite II Pro |
| Image |
|
|
|
| Hardware configuration | |||
| CPU | 2.0GHz 8-core | 2.0GHz 8-core | 8-core (2.2GHz 4-core + 1.8GHz 4-core) |
| Operating System | Android 11 | Android 9 | Android 10 |
| Memory (RAM) | 4GB | 8GB | 4GB |
| Storage | 256GB | 256GB | 128GB |
| Display | 10.1 inch | 13.3 inch | 9.7 inch |
| Resolution | 1920×1200 | 1920×1080 | 2048×1536 |
| Front Camera | 8 MP | 8 MP | – |
| Rear Camera | 13 MP | 13 MP | 16 MP |
| Operating Temperature | 0~50℃ | 0~50℃ | 0~50℃ |
| Communication | Wi-Fi/Bluetooth/USB | Wi-Fi/Bluetooth/USB | Wi-Fi/Bluetooth/USB |
| Battery | 9360mAh, 3.8V | 9360mAh, 7.6V | 11000mAh, 3.7V |
| Software Function | |||
| Full System Diagnosis | Yes | Yes | Yes |
| VIN Code Auto Recognition | Yes | Yes | Yes |
| Special Functions | 41 (including multi-VIN detection and immobilizer programmer) | 41 (including multi-VIN detection and immobilizer programmer) | 40 |
| Actuation Test | Yes | Yes | Yes |
| VAG Guided Functions | Yes | Yes | Yes |
| BMW Guided Functions | Yes | Yes | – |
| ECU Coding | Yes | Yes | Yes |
| ECU Programming | Yes | Yes | Yes |
| Repair Information | Yes | Yes | Yes |
| Remote Diagnosis | Yes | Yes | Yes |
| J2534, D-PDU/RP1210 | Yes | Yes | Yes |
| DoIP, CAN FD | Yes | Yes | Yes |
| Gateway Unlock |
Yes (FCA/Renault/VAG/
European BENZ) |
Yes (FCA/Renault/VAG/
European BENZ) |
Yes (FCA/Renault) |
| Paid Database | Yes (HaynesPro) | Yes (HaynesPro) | Yes (MOTOR) |
| Topology Map | Yes | Yes | – |
| Diagnostic Feedback | Yes | Yes | Yes |
| Software Mall | Yes | Yes | – |
| ADAS Calibration, TPMS, Key Programmer, Immobilizer, Oscilloscope, Sensor, Multimeter, Insulation Tester, Current Clamp (Optional/Expandable) | Yes (Optional) | Yes (Optional) | – |
| Endoscope, Battery Detection Clamp (Optional/Expandable) | Yes (Optional) | Yes (Optional) | Yes (Optional) |
| Free Software Upgrade Period | 2 Years | 2 Years | 2 Years |
| Languages | 23+ | 23+ | 21+ |
| Data Stream (PIDS) | 4-IN-1 | 4-IN-1 | 5-IN-1 |
| Software Packages (Optional Expansion) | New Energy, Commercial Vehicles, Immobilizer, Motorcycle | New Energy, Commercial Vehicles, Immobilizer, Motorcycle | Commercial Vehicles |
Launch X431 PAD V versus PAD VII Models
While both PAD5 and PAD7 versions deliver identical diagnostic capabilities, the PAD7 distinguishes itself with a more expansive display and enhanced memory configuration.
X431 PAD Series Competitive Advantages
When evaluated against the Autel Elite II Pro, Launch X431 PAD diagnostic tools demonstrate several superior characteristics:
- Includes specialized BMW guided functionality absent in Autel's Elite II Pro system
- Provides advanced network topology mapping unavailable on competing units
- Offers comprehensive paid gateway access for FCA, Renault, VAG, and European Mercedes-Benz vehicles alongside HaynesPro repair database, whereas Elite II Pro supports limited gateway options with MOTOR database
- Enables expansion through specialized software packages (New Energy Vehicles, Commercial Vehicles, Immobilizer Systems, Motorcycles) and multiple hardware accessories, contrasting with Elite II Pro's restriction to endoscope and battery clamp modules
- Features enhanced hardware specifications including:
- Superior RAM configuration (reaching 8GB capacity)
- Expanded internal storage (256GB versus 128GB)
- Advanced multi-camera systems
- Supports extended language options (23+ languages) compared to Elite II Pro's 21+ language capability
Core Diagnostic Capabilities of Launch X431 PAD Series
- Smartlink Remote Diagnostic Operations
- Vehicle Network Topology Mapping
- Rapid System Scanning Technology
- Automated Diagnostic Planning
- HaynesPro Automotive Repair Database
- SGW Gateway Integration
- Precision Pin Detection
- CANS CAN FD Protocol Analysis
- Comprehensive Protocol Support: CAN / CAN FD / DoIP / J2534
- ECU Programming Functions
- Software Mall Access (New Energy, Commercial, Immobilizer, Motorcycle applications)
- Expandable Hardware Modules
Professional Selection Guidance
-

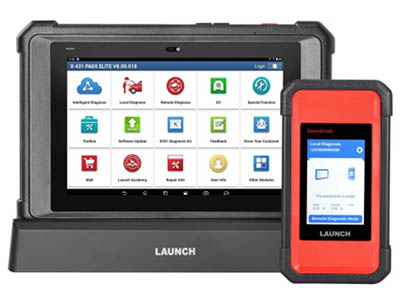

Opt for X-431 PAD5 ELITE when:
- Seeking optimal value with premium diagnostic features
- Advanced diagnostics including topology mapping and BMW guided functions are essential, though daily online ECU programming isn't required
- Modern Android 11 OS, generous 256GB storage, and durable 10.1-inch display meet your operational requirements
-

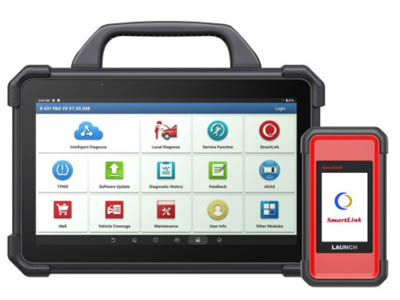

Select X-431 PAD7 ELITE if:
- Operating as a professional workshop demanding top-tier hardware and complete functionality
- Large 13.3-inch display enhances workflow visibility and full ECU programming support is necessary
- Maximum 8GB RAM and superior multitasking capabilities are critical for operational efficiency
-

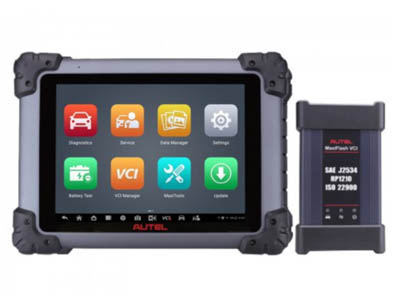

Consider Autel MaxiSys Elite II Pro exclusively when:
- Your diagnostic workflow rarely involves contemporary BMW models or network topology analysis
- Committed to Autel ecosystem and don't require expanded software packages available for X-431 systems
- Higher screen resolution (2048×1536) on compact 9.7-inch display aligns with specific preference
