How to Clone BMW MD1CS002 ECU with CG FC200?

1. Critical Prerequisite: ECU Unlocking

The MD1CS002 (used in BMW G-series vehicles post-2020) employs advanced hardware encryption. Direct cloning is impossible without unlocking.

2. Preparation Phase

Hardware Setup:

CG FC200 main unit + MPC5xx Adapter (for MD1-series pin access).

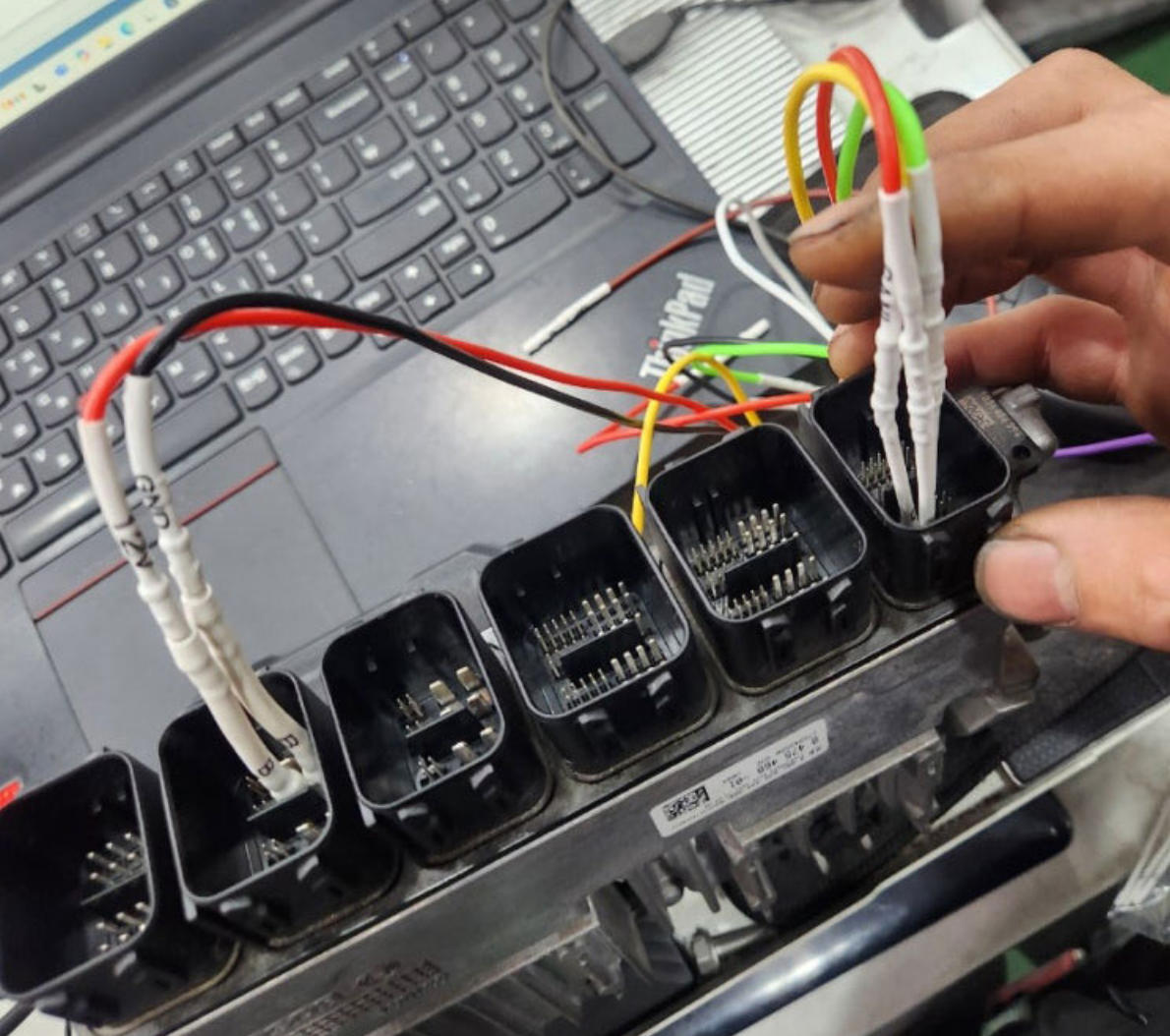

Solder connections: K-Line (diagnostic), GPT (power timing), and ground wires per CG FC200’s wiring diagram.

Software Configuration:

Launch CG FC200 → Select BMW → Enter chassis code (e.g., Gxx) → Choose MD1CS002.

Operate in "Bench Mode" (offline).

3. Cloning Procedure

Step 1: Read Source ECU Data

Click "Identify" to retrieve ECU details (ISN, HW version).

Sequentially read:

PFLASH (program memory, 5–10 min)

DFLASH (data memory)

External EEPROM

Save all files securely (Critical: Backup before writing!).

Step 2: Write to Donor ECU

Load backup files (PFLASH/DFLASH/EEPROM) into CG FC200.

Initiate write process → Run "Data Verification" to confirm integrity.

Post-Cloning Validation

Reinstall ECU → Clear DTCs (e.g., DME/CAS faults).

Test:

Ignition, idling, and acceleration.

Monitor for limp mode/emission errors.

4. Professional Recommendations

Data Integrity: Cross-check PFLASH/DFLASH checksums in WinOLS post-cloning.

Tool Updates: Ensure CG FC200 is internet-connected for protocol updates.

Contingency: For persistent start failures, re-verify ISN in both ECU and CAS modules.

Cost-Benefit: For non-specialists, outsourcing to certified ECU workshops is advised (high upfront unlocking cost + technical complexity).

Final Note: Success hinges on unlocking → full data replication → ISN alignment. Strict adherence to this workflow minimizes failure rates, but technical expertise remains essential.
